TECNOMECCANICA

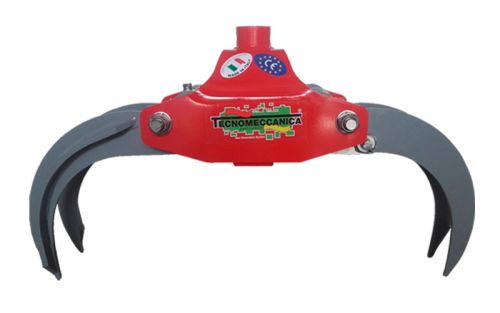

Hydraulic grapple for excavators
mod. Professional

Linea Forest Winner

For excavators of up to 40 tons, for forestry and industrial uses

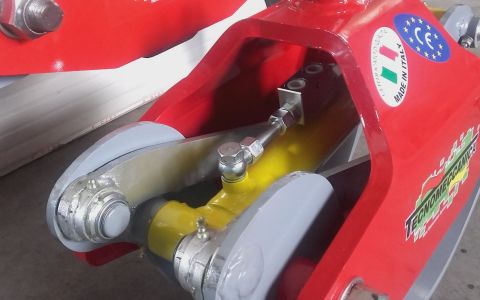

Made from Domex 710 steel and equipped with lock valve

Wood grabs are used to move, load and unload tree trunks cleaned from branches and ready to be transported and can be mounted on forest cranes of any size and range.

The Professional wood grab is used in forestry and industrial applications, for excavators up to 15 t.
An important innovation is the splitting grapple that can be installed on a crane, which can split logs up to a diameter of 80 cm for the purpose of complementary work.
For pressures greater than 250 bar a limit valve is installed (optional)

ESCAVATOR MATCHED

MODEL Professional MODEL Professional (BLUE LINE) ESCAVATOR MATCHED
THL30 E - MAX 1.5 ton.
THL 30 Professional
P115 Pro-10 MAX 2 ton.

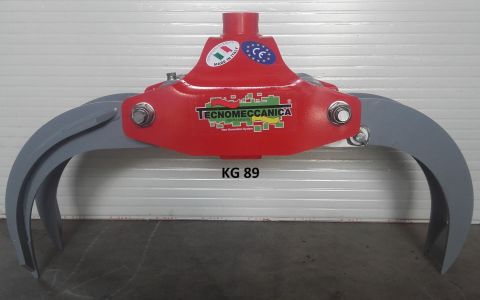

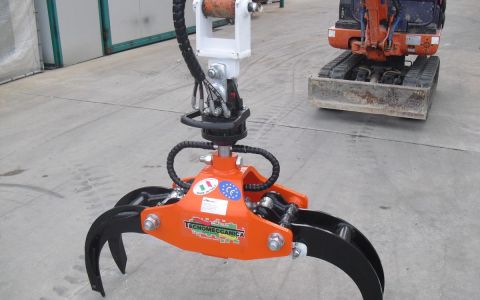

THLS 30 Professional
P115 Pro MAX 4   ton.
TP 120 Professional
P135 Pro MAX 7   ton.
TP 135 Professional
P150 Pro MAX 12   ton.
TP 155 Professional
P170 Pro MAX 18   ton.
TP 175 Professional
P190 Pro MAX 25  ton.
TP 200 PRO
- MAX 40   ton.

TECHNICAL DATA

MODEL Weight
kg
Lift
Kg
MAX BAR

A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
SP
D
mm
AREA
mq
SP
C
mm
THL30 E 58 1000 210 1000 730 405 450 460 65 310 8 0.146 8
THL 30 Professional
71 1200 250 1000 730 405 450 460 65 310 10 0,146 10
THLS 30 Professional
89 1400 250 1000 730 405 450 460 65 310 10 0,146 20
TP 120 Professional
110 1700 250 1200 770 450 480 510 80 355 10 0,201 20

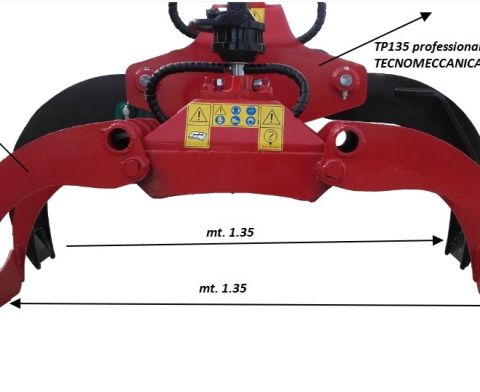

TP 135 Professional
155 2100 250 1350 880 500 540 550 90 370 12 0,255 20
TP 155 Professional
240 2700 250 1550 960 620 630 600 100 430 12 0,336 20
TP 175 Professional
340 3200 250 1750 1100 680 710 670 130 490 15 0,428 20
TP 200 Professional
420 3600 250 2000 1300 800 820 780 150 560 20 0,531 20

TECHNICAL DATA BLUE LINE Pro

TECHNICAL DATA BLUE LINE
MODEL Weight
kg
Lift
Kg
MAX BAR

A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
SP
D
mm
AREA
mq
SP
C
mm
P115 Pro-10 71 1200 250 1150 647 365 415 420 65 310 10 0,1177 10
P115 Pro
89 1400 250 1150 647 365 415 420 65 310 10 0,1177 20
P135 Pro
110 1700 250 1350 766 440 495 500 65 355 10 0,1723 20
P150 Pro
155 2100 250 1500 845 500 545 570 65 370 12 0,2176 20
P170 Pro
240 2700 250 1700 961 757 635 630 65 430 12 0,2958 20
P190 Pro
340 3200 250 1900 1078 650 700 710 65 490 15 0,3717 20

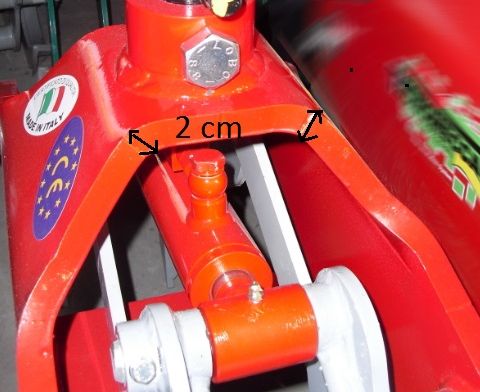

Grazie alla struttura centrale molto stretta ed ad uno spessore dell'acciaio molto elevato dove viene fissata la boccola del rotore è possibile garantire un' ottima tenuta anche con i rotatori a perno, permettendo così di risparmiare sul costo complessivo.

OPTIONAL

*Accessori per pinze per tronchi, pinze da roccia, benna mordente, pinze con motosega, pinze selezionatrice, polipi per legna/rottami

*Accessori ROTATORI per pinze tronchi,pinze da roccia, benna mordente, pinze con motosega,pinze selezionatrice, polipi per legna/rottami

Rotori per uso  orizzontale/verticale  per  pinze mod. RF
Rotori ad uso pendolare per pinze
Forcella (su misura  per mod. RF)
Forcella (su misura  per pinze)
Valvola di MASSIMA  per pressioni superiori ai 250 BAR
Kit Benne per pinze modello comby
Attacco rapido (specificare modello)
