Hydraulic grapple P-PRO (heavy) - Blue Line Series
For excavators of up to 25 tons, for forestry and industrial uses
Made from Domex 710 steel and equipped with lock valve

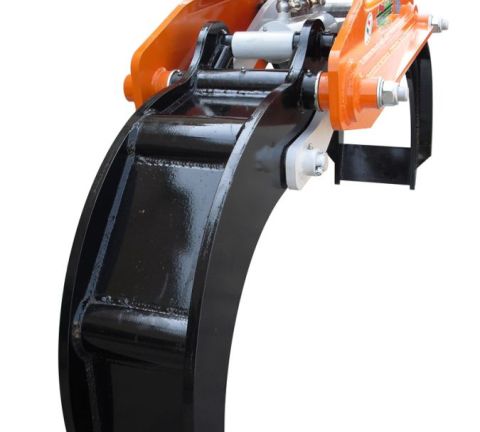

The trunk grapple are used to transport, load, and unload tree trunks that have been cleaned of branches and are ready for transport: They can be assembled on forestry cranes of all models and sizes.
The reinforced log grab is for forestry and industrial uses, for excavators of up to 25 tons.

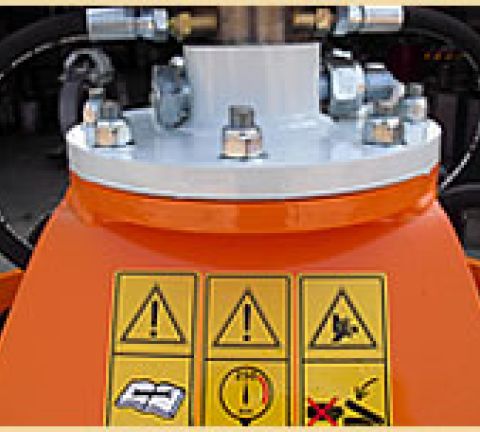

Attacco Safety Block

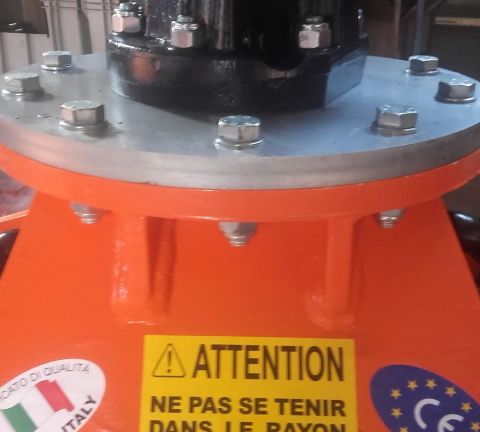

Tecnomeccanica Safety Block coupling provided as standard. This system replaces the flanged rotators and is made entirely of steel, guaranteeing better grip and safety.
Escavator Matched
| Model BLUE LINE | Escavator Matched |
|---|---|
| P 135 P - Pro | MAX 8.5 ton. |
| P 150 P - Pro | MAX 14 ton. |
| P 170 P - Pro | MAX 18 ton. |
| P 190 P - Pro | MAX 25 ton. |

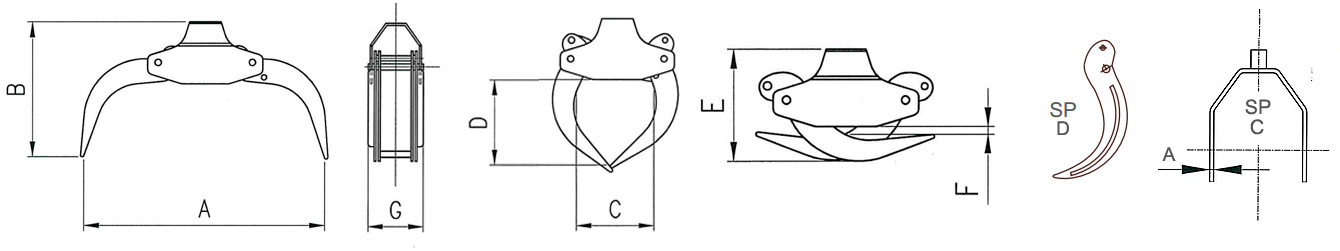

Technical Data BLUE LINE P-Pro
| MODEL | Weight kg | Lift Kg |
MAX BAR | A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
SP D mm |
AREA mq |
SP C mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P135 P - Pro |
130 | 1900 | 350 | 1350 | 766 | 440 | 495 | 500 | 65 | 355 | 12 | 0,1723 | 20 |
| P150 P - Pro |
180 | 2300 | 350 | 1500 | 845 | 500 | 545 | 570 | 65 | 370 | 15 | 0,2176 | 20 |
| P170 P - Pro | 315 | 2900 | 350 | 1700 | 961 | 575 | 635 | 630 | 65 | 430 | 15 | 0,2958 | 20 |
| P190 P - Pro | 400 | 3400 | 350 | 1900 | 1078 | 650 | 700 | 710 | 65 | 490 | 20 | 0,3717 | 20 |
GRAPPLE ACCESSORIES -ROTATORS FOR WOOD GRABS
