Rock Grapple - wood

Linea Forest Winner

Made from Domex 710 steel and equipped with lock valve

Rock grapple help rocks handling, loading, unloading and laying

TECHNICAL DATA FOR REFERENCE PURPOSES

MODEL
RF		 Weight
kg		 Lift
Kg		  lift horizontal position MAX BAR A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 SP
mm		 AREA
mq
TP 100 RF 120 1600 800 kg 250 1000 730 405 450 460 65 310 10 0,146
TP 120 RF 132 1900 950 kg 250 1200 770 450 480 510 80 355 10 0,201
TP 135 RF 239 2300 1150 kg 250 1350 880 500 540 550 90 370 12 0,255
TP 155 RF 330 2900 1450 kg 250 1550 960 620 630 600 100 430 12 0,336
TP 175 RF 408 3400 1700 kg 250 1750 1100 680 710 670 130 490 15 0,428
TP 200 RF 540 4000 2000 kg 250 2000 1300 800 820 780 150 560 20 0,531
MODEL
RP		 Weight
kg		 Lift
Kg		 MAX BAR A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 SP
mm		 AREA
mq
TP 100 RP 89 1600 250 1000 730 405 450 460 65 310 10 0,146
TP 120 RP 121 1900 250 1200 770 450 480 510 80 355 10 0,201
TP 135 RP 170 2300 250 1350 880 500 540 550 90 370 12 0,255
TP 155 RP 231 2900 250 1550 960 620 630 600 100 430 12 0,336
TP 175 RP 374 3400 250 1750 1100 680 710 670 130 490 15 0,428
TP 200 RP 495 4000 250 2000 1300 800 820 780 150 560 20 0,531



A MAXIMUM pressure valve (available on request) is fitted for pressure above 250 BAR

TECHNICAL DATA FOR REFERENCE mod.COMBY

MODEL
RF COMBY		 Weight
kg		 Lift
Kg		  lift horizontal position MAX BAR A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 G1 TEETH
G2 BUCKETS
mm		 SP
mm		 AREA
mq
TP 100 RF COMBY 153 1600 800 kg 250 1000 730 405 450 460 65 310 650 10 0,146
TP 120 RF COMBY 179 1900 950 kg 250 1200 770 450 480 510 80 355 680 10 0,201
TP 135 RF COMBY 304 2300 1150 kg 250 1350 880 500 540 550 90 370 750 12 0,255
TP 155 RF COMBY 340 2900 1450 kg 250 1550 960 620 630 600 100 430 850 12 0,336
TP 175 RF COMBY 513 3400 1700 kg 250 1750 1100 680 710 670 130 490 1000 15 0,428



MODEL
RP COMBY		 Weight
kg		 Lift
Kg		 MAX BAR A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 G1 TEETH
G2 BUCKETS
mm		 SP
mm		 AREA
mq
TP 100 RP COMBY 122 1600 250 1000 730 405 450 460 65 310 650 10 0,146
TP 120 RP COMBY 168 1900 250 1200 770 450 480 510 80 355 680 10 0,201
TP 135 RP COMBY 235 2300 250 1350 880 500 540 550 90 370 750 12 0,255
TP 155 RP COMBY 319 2900 250 1550 960 620 630 600 100 430 850 12 0,336
TP 175 RP COMBY 479 3400 250 1750 1100 680 710 670 130 490 1000 15 0,428



ESCAVATOR MATCHED

MODELLO ESCAVATOR MATCHED MODEL ESCAVATOR MATCHED
TP 100 RP MAX 4 ton. TP 100 RF MAX 3,5 ton.
TP 120 RP MAX 7 ton. TP 120 RF MAX 5,5 ton.
TP 135 RP MAX 12 ton. TP 135 RF MAX 8,5 ton.
TP 155 RP MAX 15 ton. TP 155 RF MAX 10,5 ton.
TP 175 RP MAX 20 ton. TP 175 RF MAX 13 ton.
TP 200 RP MAX 25 ton. TP 200 RF MAX 16 ton.

GRAPPLE ACCESSORIES

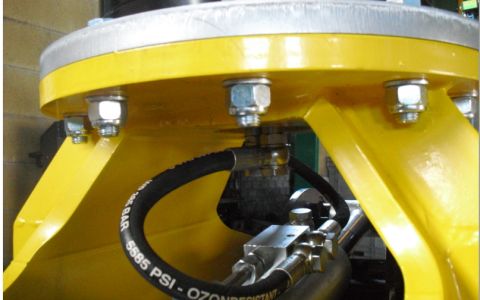

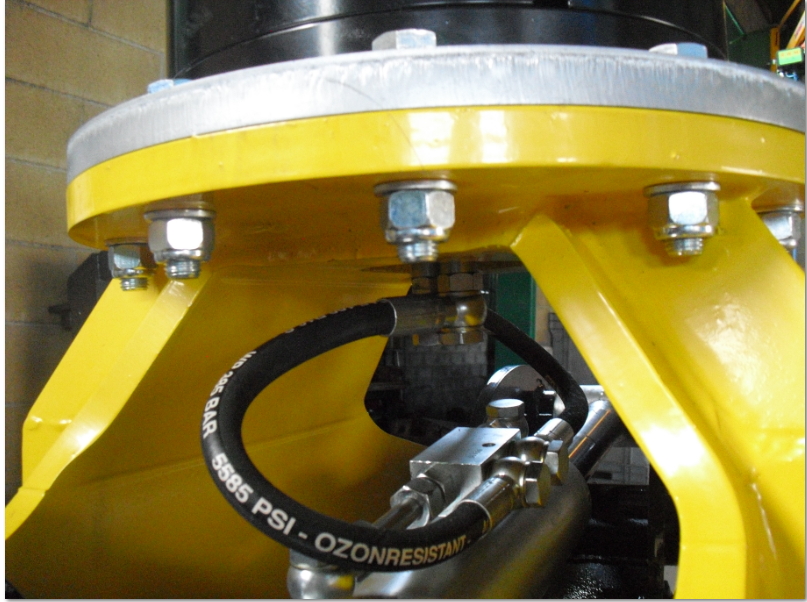

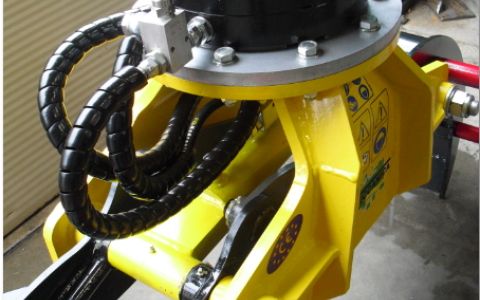

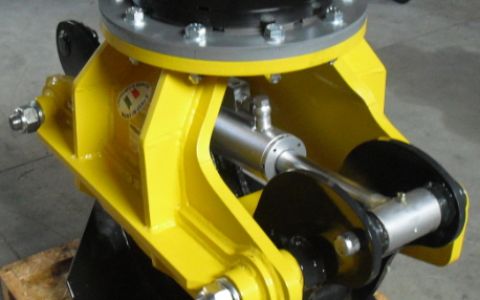

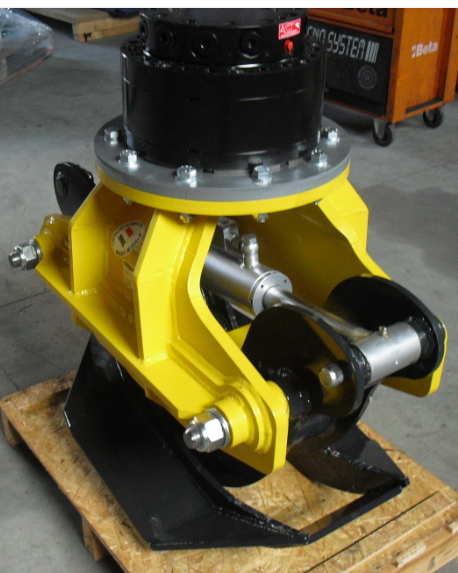

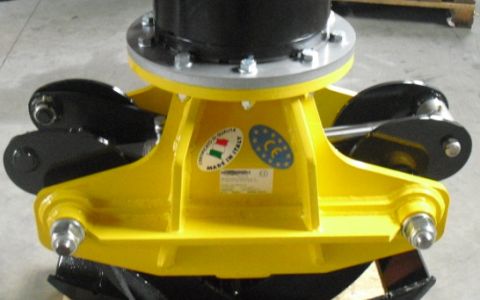

Collegamenti tubi interno
Collegamenti tubi interno

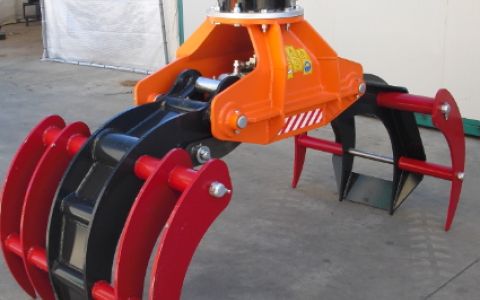

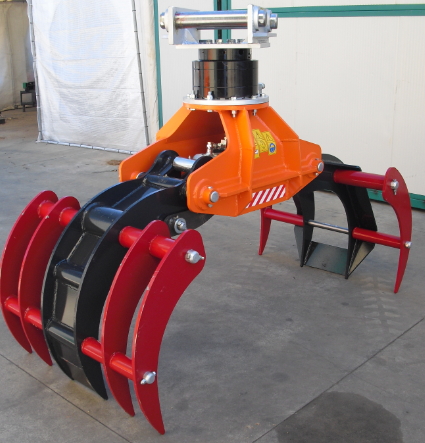

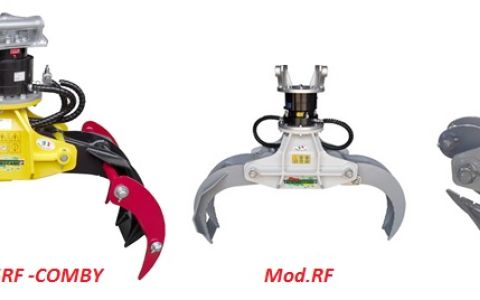

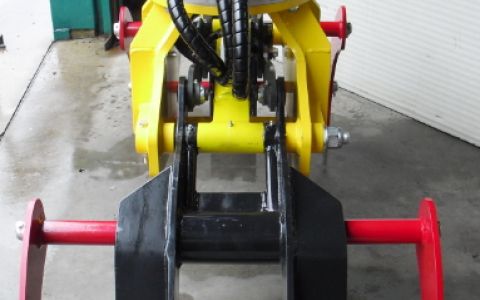

Log grab RF-COMBY
Log grab RF-COMBY
Log grab RF-COMBY
Log grab RF-COMBY

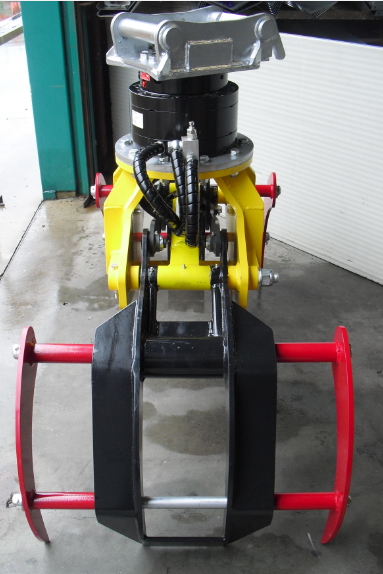

Pinza da roccia modello RF- con VALVOLA di MAX 250 BAR
Pinza da roccia modello RF-con VALVOLA di MAX 250 BAR

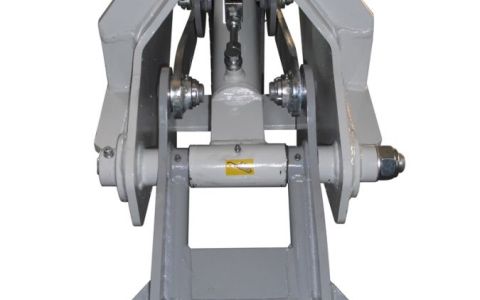

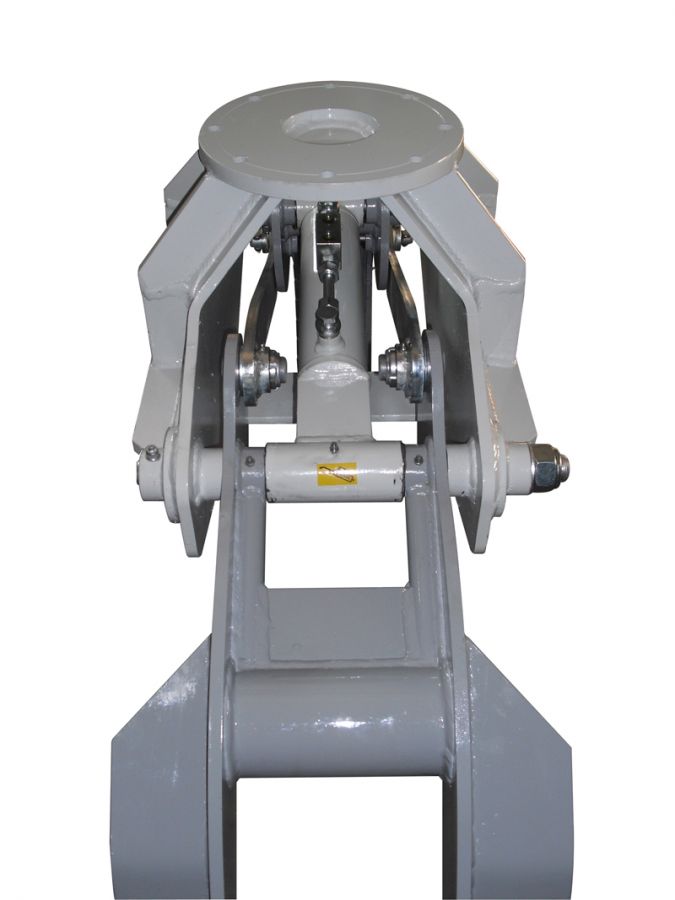

Pinza da roccia modello RF
Pinza da roccia modello RF
Pinza da roccia - mod. RF
Pinza da roccia - mod. RF
Pinza da roccia modello RF
Pinza da roccia modello RF

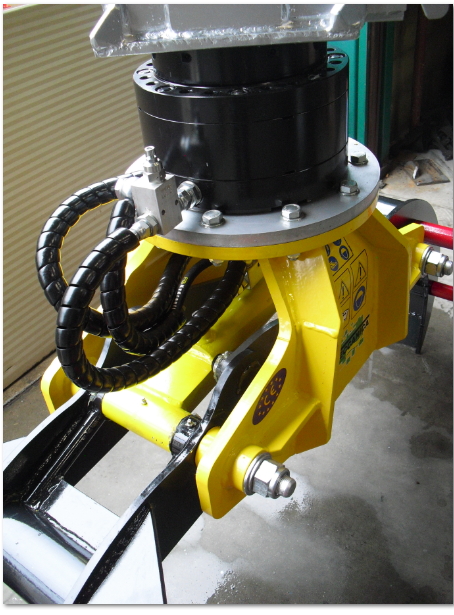

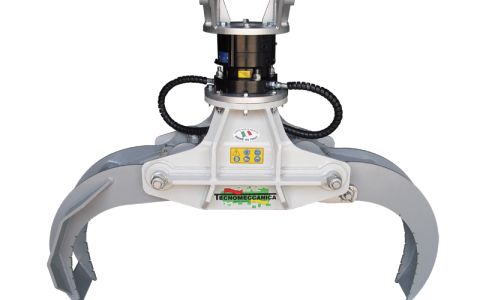

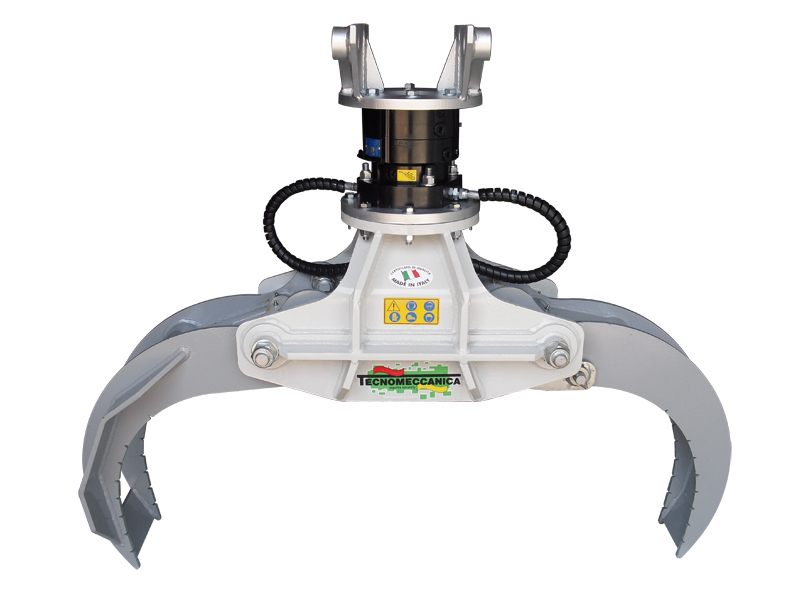

Rock grab-wood- Mod. RF
Rock grab-wood- Mod. RF
Rock grab -wood- Mod. RF
Rock grab-wood- Mod. RF

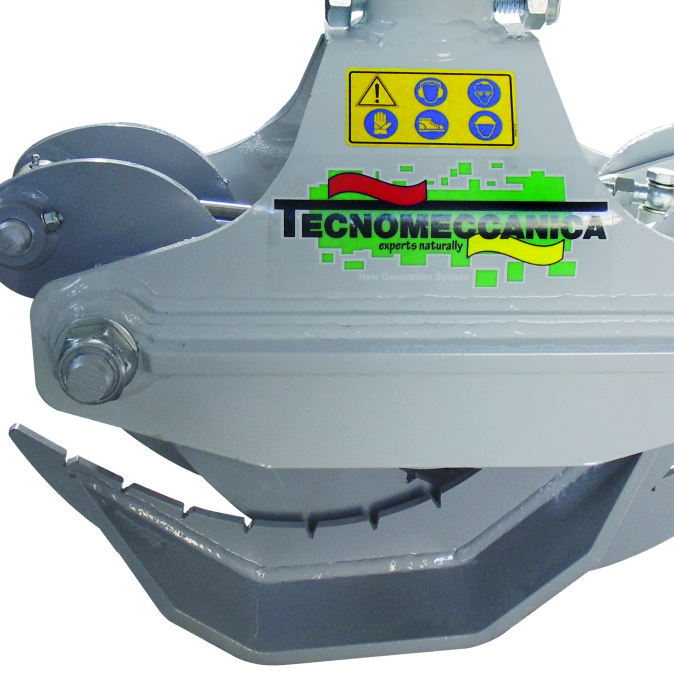

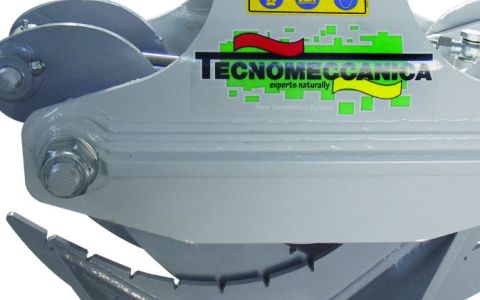

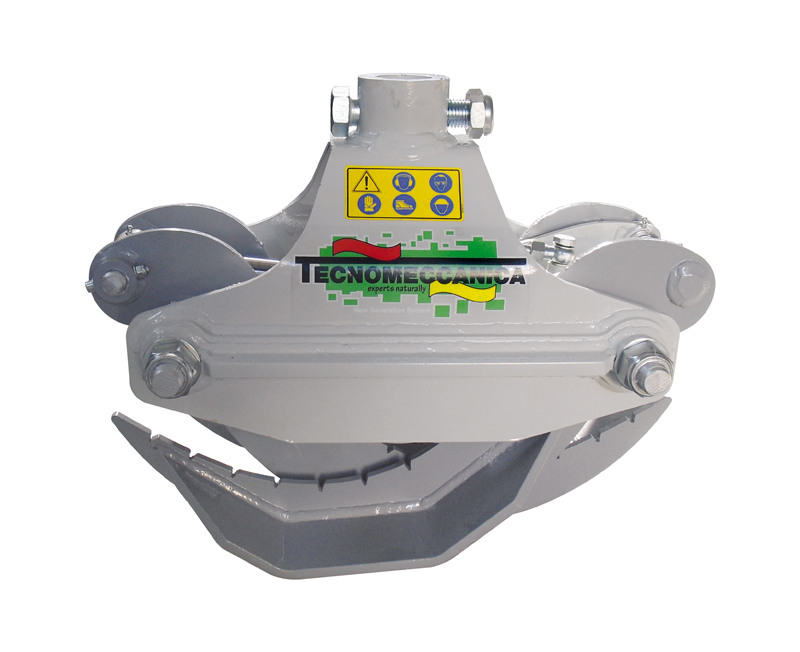

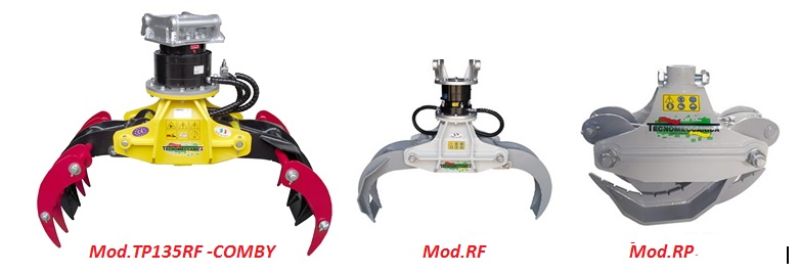

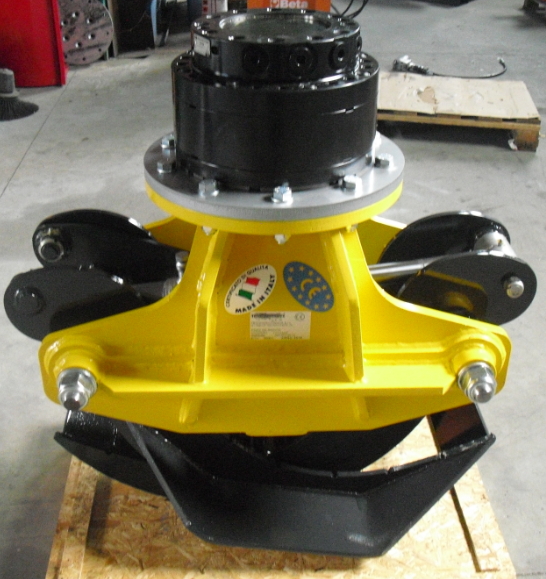

Rock grab-wood Mod. RP
Rock grab-wood Mod. RP

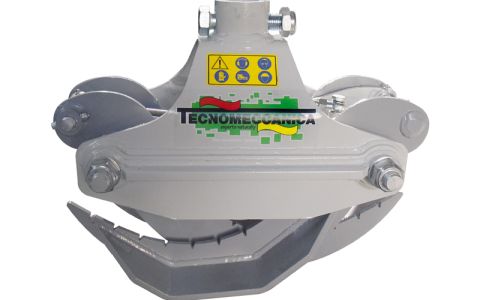

Rock grab-wood- Mod. RP
