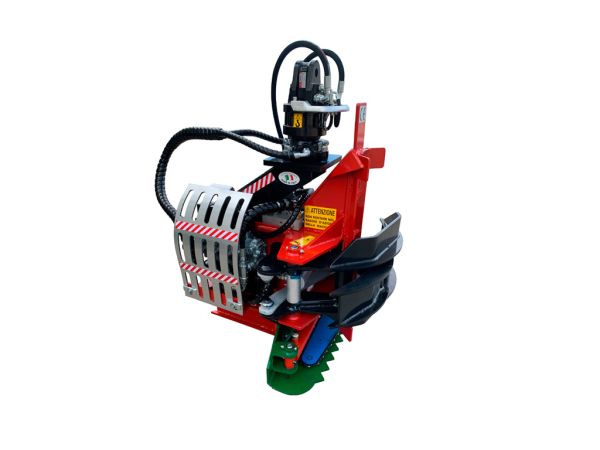

Grapple saw wood energy with TILT System for crane
TP 120 RF - TILT
TP 135 RF - TILT
Need only 2 pipes link !
Equipments Standard
Kit cassette saw with hydraulic piston motor
Chaine lubrification automatic
Hydraulic rotator 5 TON./12 TON. unlimited
remote control
Technical Data
MOD. TP120 RF-TILT
MOD. TP135 RF-TILT
Open Grapple (cm)
120
135
Weight (Kg)
470
522
Flow (lt/min)
50
80
Cutting diameter (cm)
45
65
Pressure Max of working (bar)
250
250
Pressure Minimum of works (bar)
220
220
Rotator
5 Ton. unlimited
12 Ton. unlimited
