Hydraulic grapple P-Professional (heavy) LARGE CAPACITY

For excavators of up to 40 tons, for forestry and industrial uses

Made from Domex 710 steel and equipped with lock valve

The trunk grapple are used to transport, load, and unload tree trunks that have been cleaned of branches and are ready for transport: They can be assembled on forestry cranes of all models and sizes.
The reinforced log grab is for forestry and industrial uses, for excavators of up to 40 tons.

You get all the models LARGE CAPACITY by reducing the maximum width of opening with a more rounded shape that increases the performance of use and significally the loading volume.

For example , a grapple of 1.35 m the opening will be of 1.20m.

Attacco Safety Block

Tecnomeccanica Safety Block coupling provided as standard. This system replaces the flanged rotators and is made entirely of steel, guaranteeing better grip and safety.

Escavator Matched

Model	Escavator Matched
TP 120 P - Professional	MAX 8.5 ton.
TP 135 P - Professional	MAX 14 ton.
TP 155 P - Professional	MAX 18 ton.
TP 175 P - Professional	MAX 25 ton.
TP 200 P - Professional	MAX 40 ton.

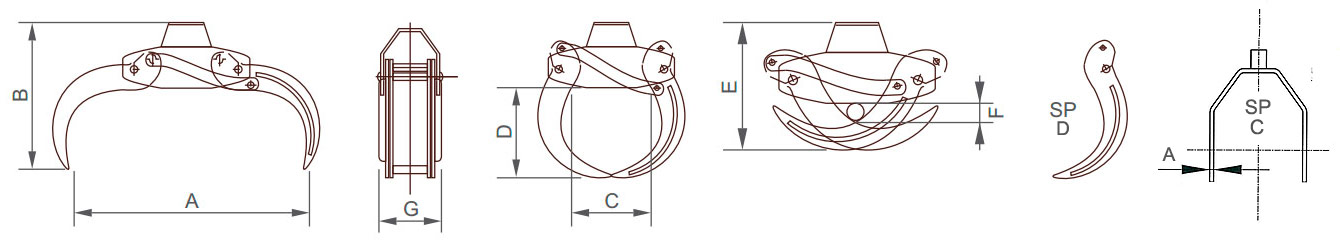

Technical Data

MODEL	Weight kg	Lift Kg	MAX BAR	A mm	B mm	C mm	D mm	E mm	F mm	G mm	SP D mm	AREA mq	SP C mm
TP 120 P - Professional	130	1900	350	1200	770	450	480	510	80	355	12	0,201	20
TP 135 P - Professional	180	2300	350	1350	880	500	540	550	90	370	15	0,255	20
TP 155 P - Professional	314	2900	350	1550	960	620	630	600	100	430	15	0,336	20
TP 175 P - Professional	400	3400	350	1750	1100	680	710	670	130	490	20	0,428	20
TP 200 P - Professional	630	4000	350	2000	1300	800	820	780	150	560	20	0,531	20

Download

Scarica il CERTIFICATO DI ORIGINE PINZE DA LEGNA (77.5 KiB)

GRAPPLE ACCESSORIES -ROTATORS FOR WOOD GRABS

Photo Gallery

Attacco Safety Block Tecnomeccanica di serie per Rotori Flangiati

Tecnomeccanica Safety Block coupling provided as standard

Adjustable pressure relief and lockout valves provided as standard

Download technical data in PDF
