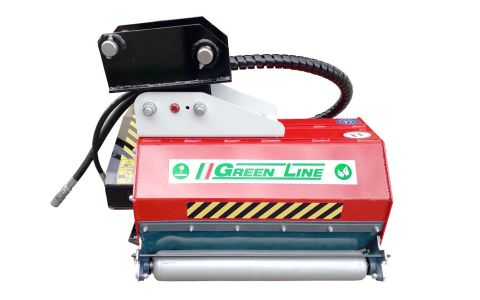

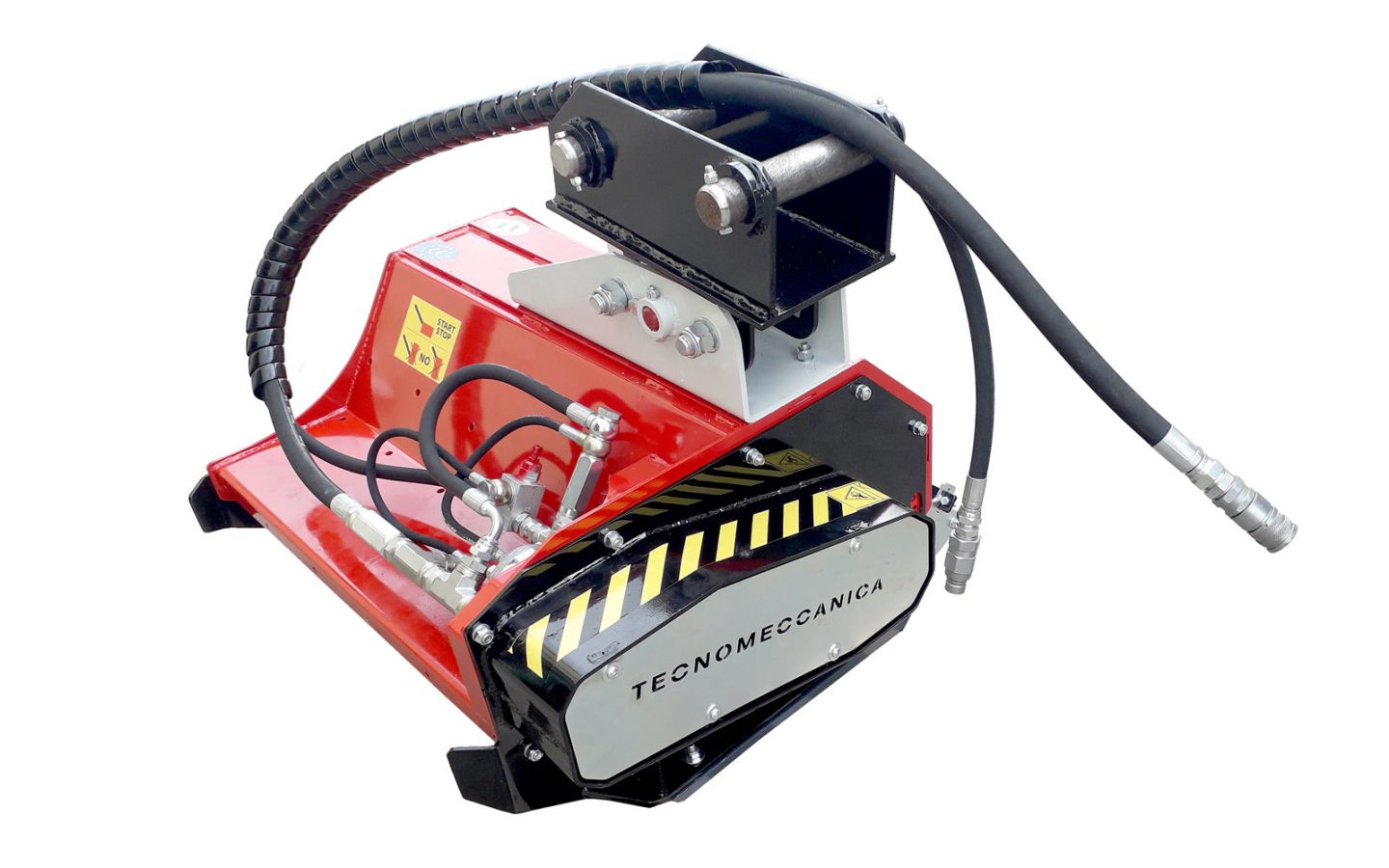

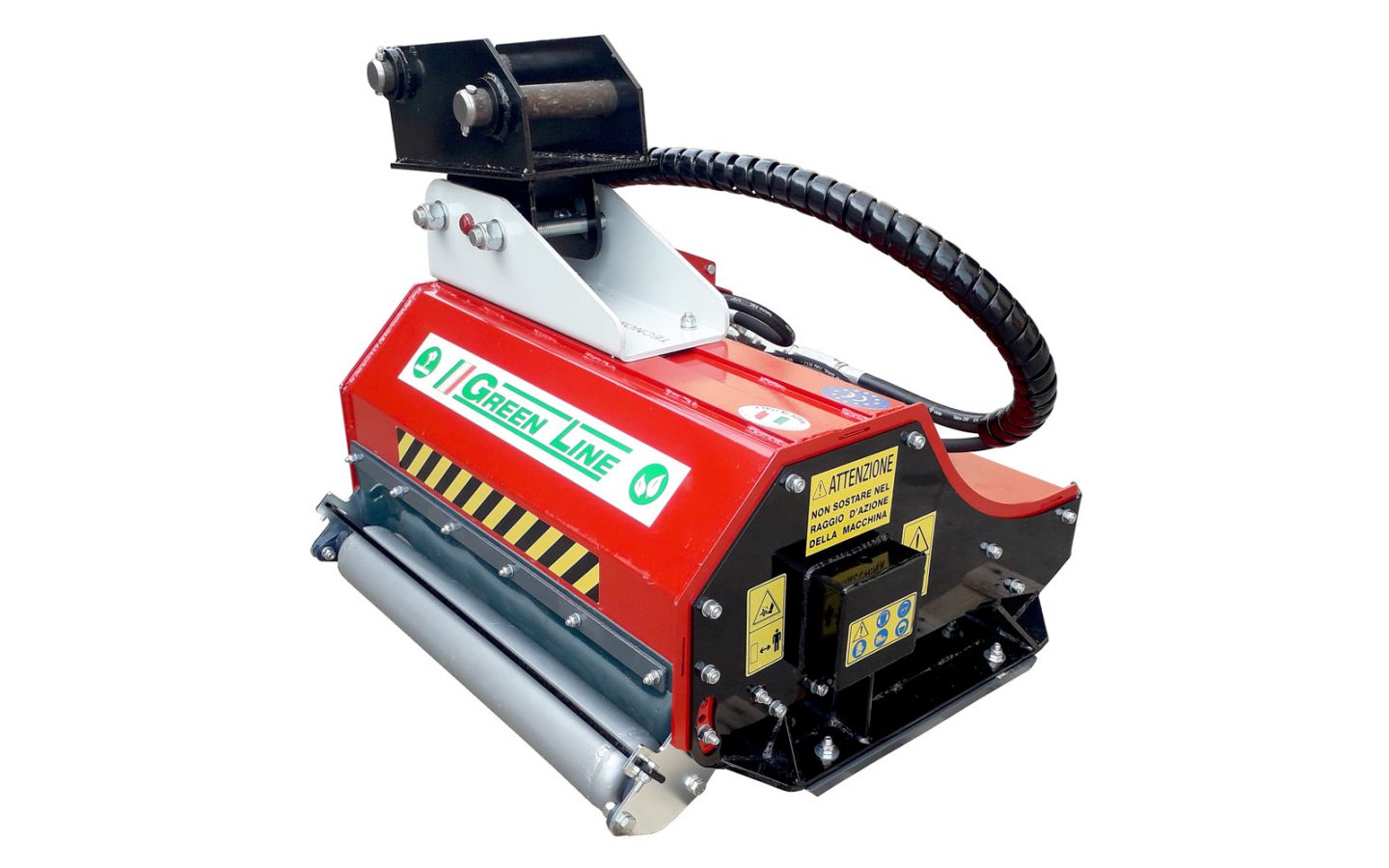

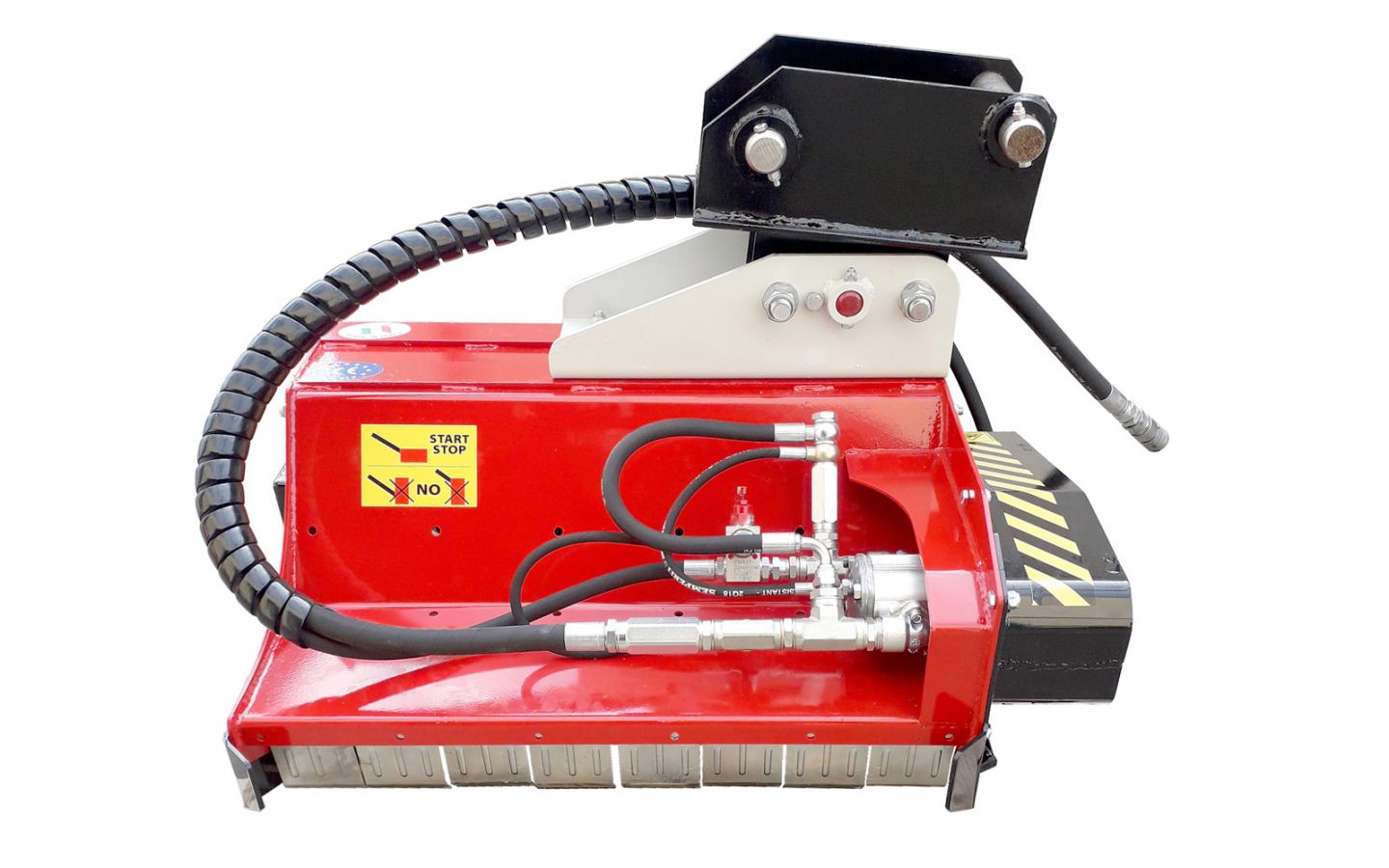

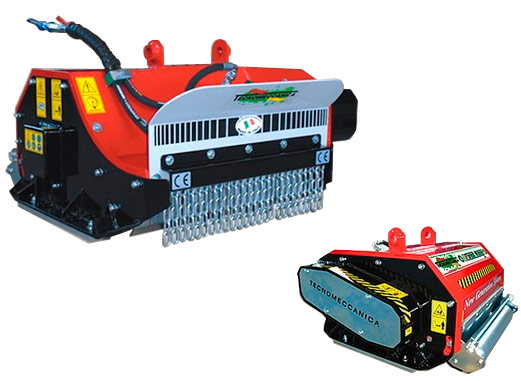

Hydraulic mulcher for excavators
Type SUPER FAST C

with belt's trasmission

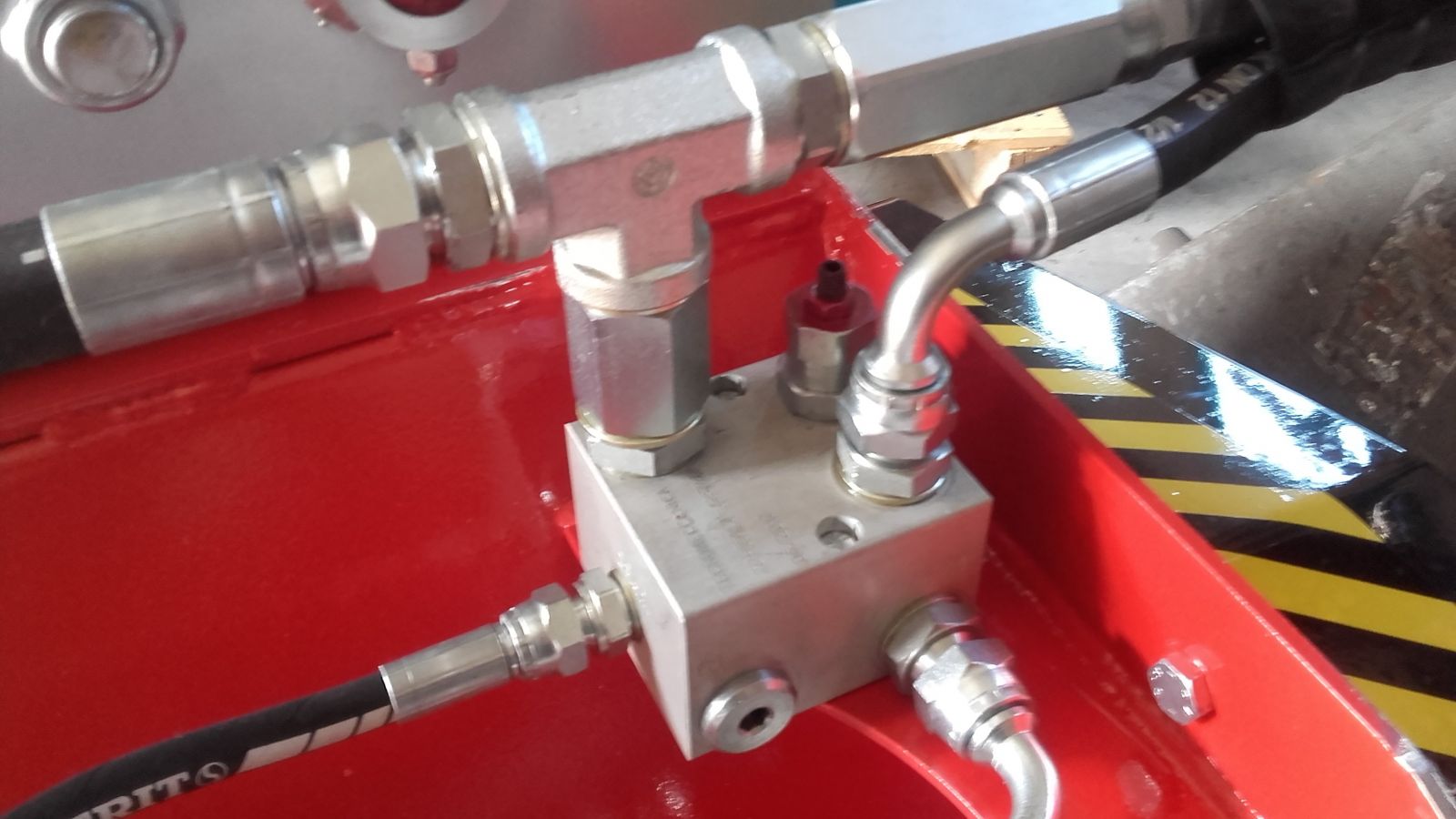

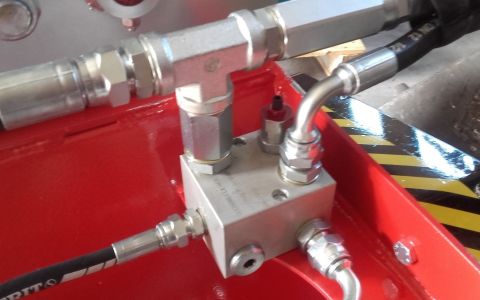

HYDRAULIC SAFETY BLOCK

The machine is supplied as standard with the new Tecnomeccanica “HYDRAULIC SAFETY BLOCK” valve kit, an aluminum safety valve containing the following valves inside:

• Valve maximum pressure work hydraulic motor
• No-return valve in case of reverse connection of hydraulic pipes
• Shockproof valve that allows the rotor to stop proportionally
• One-way valve for connecting the drainage pipe to the return circuit

The machine works only with two pipes: delivery pipe and return pipe

Standard equipment

Hydraulic section:
Unidirectional or bidirectional hydraulic motor, pressure relief valve; unidirectional valve for unidirectional motor; anti-cavitation valve; pressure compensation valve for draining excess oil; interchangeable guides

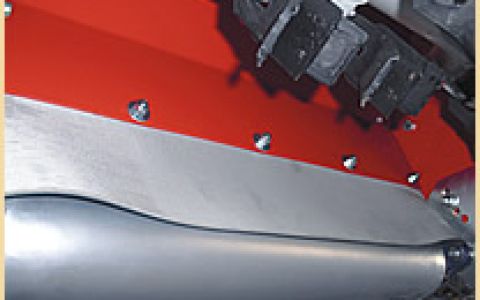

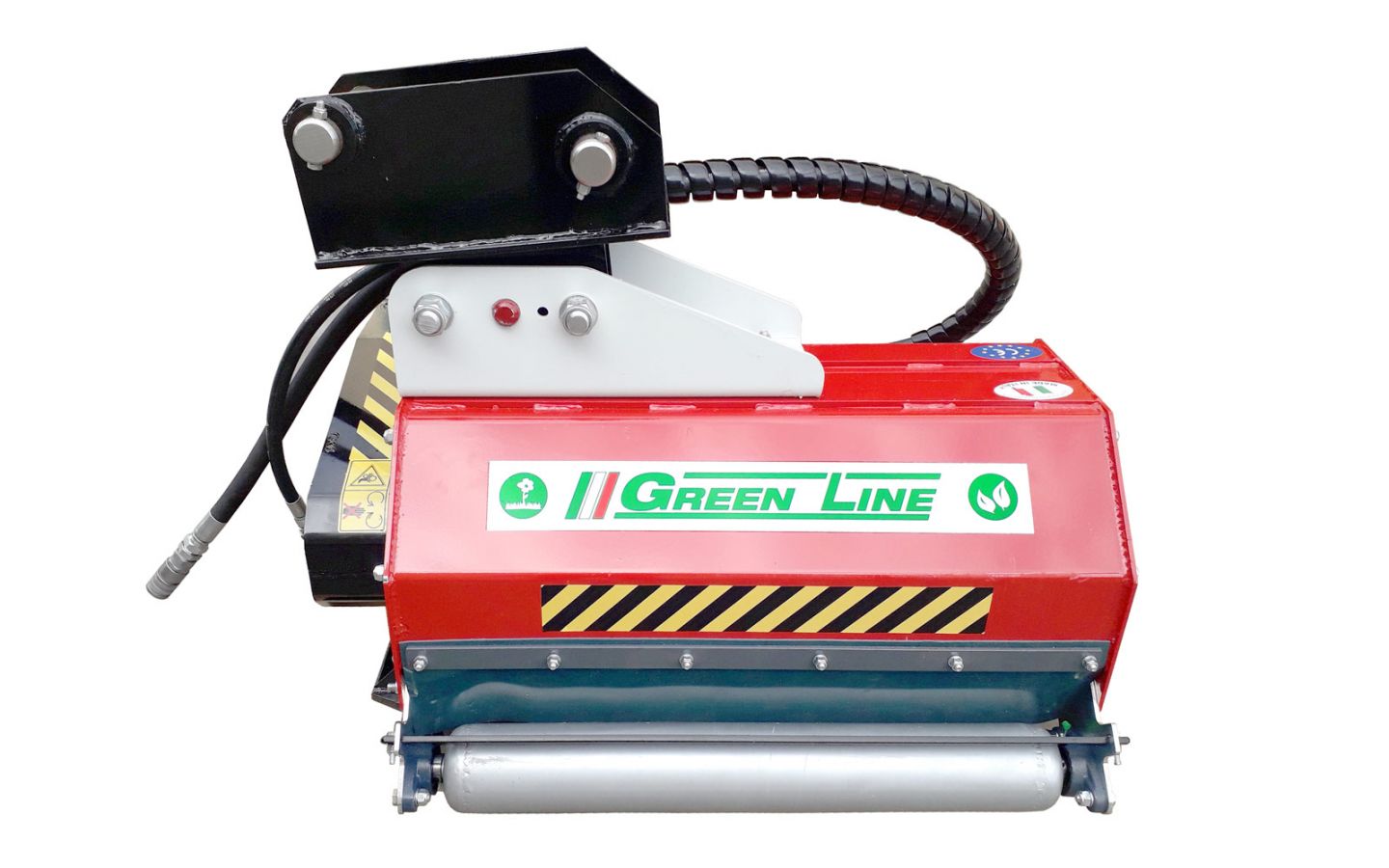

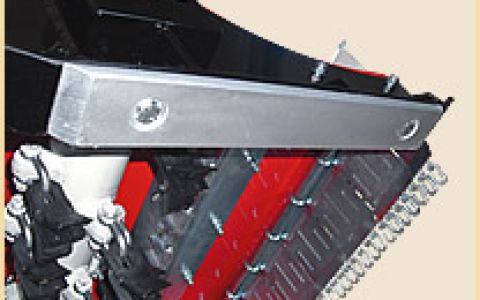

Tools B; Wear-resistant pads; Rear roller for cutting height adjustment; Front stone guard vanes; Hydraulic safety block; Motor with belt transmission

Two hydraulic pipes / hoses without quick coupling

Accessories on demand

• Attachment plate on demande

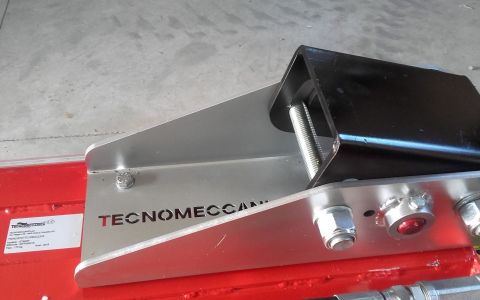

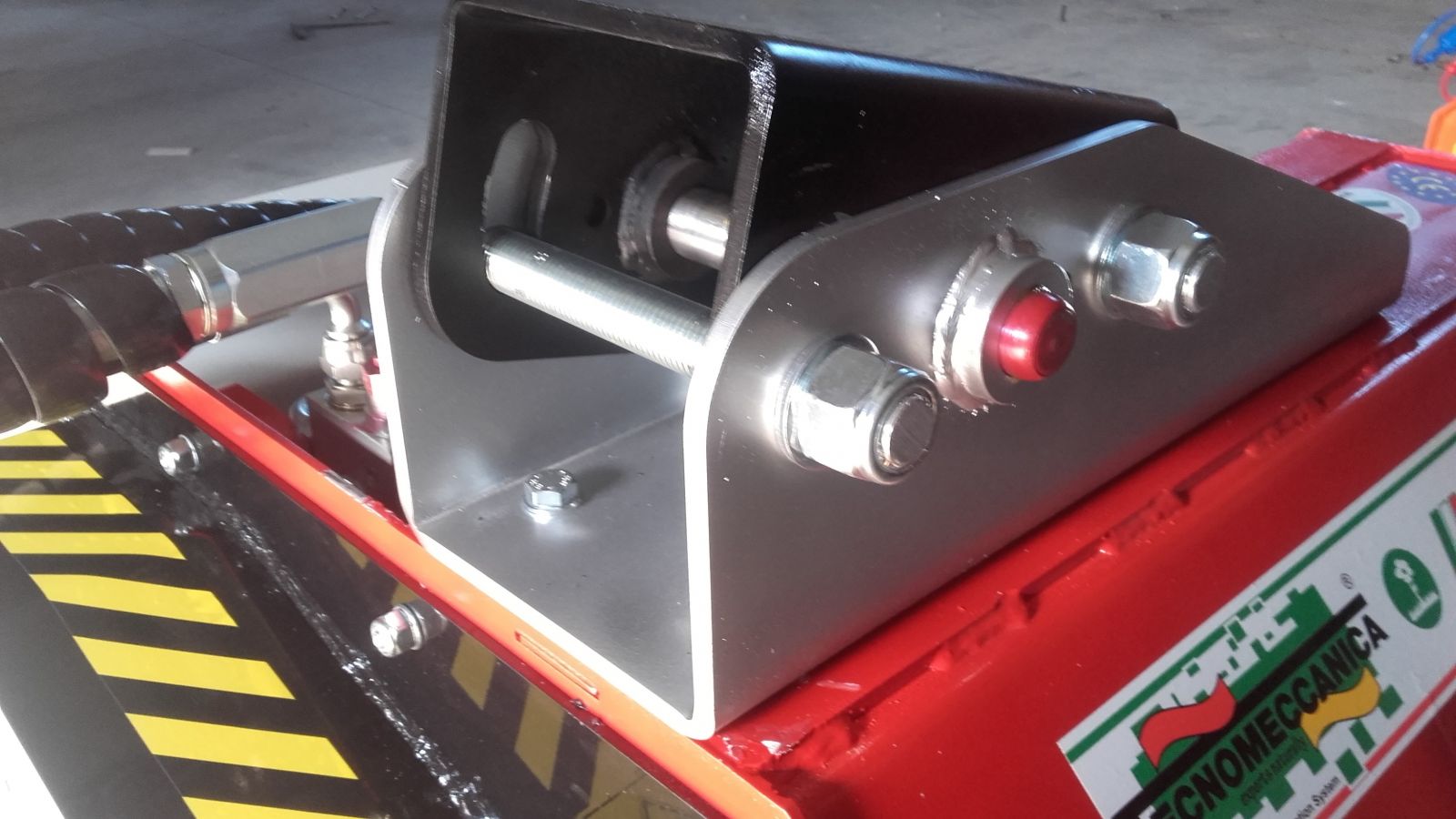

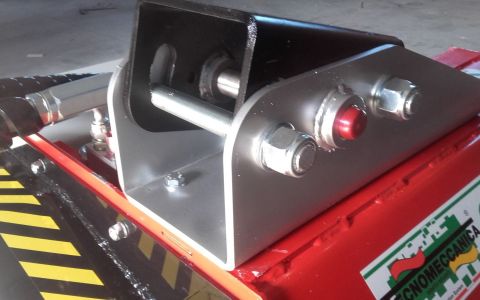

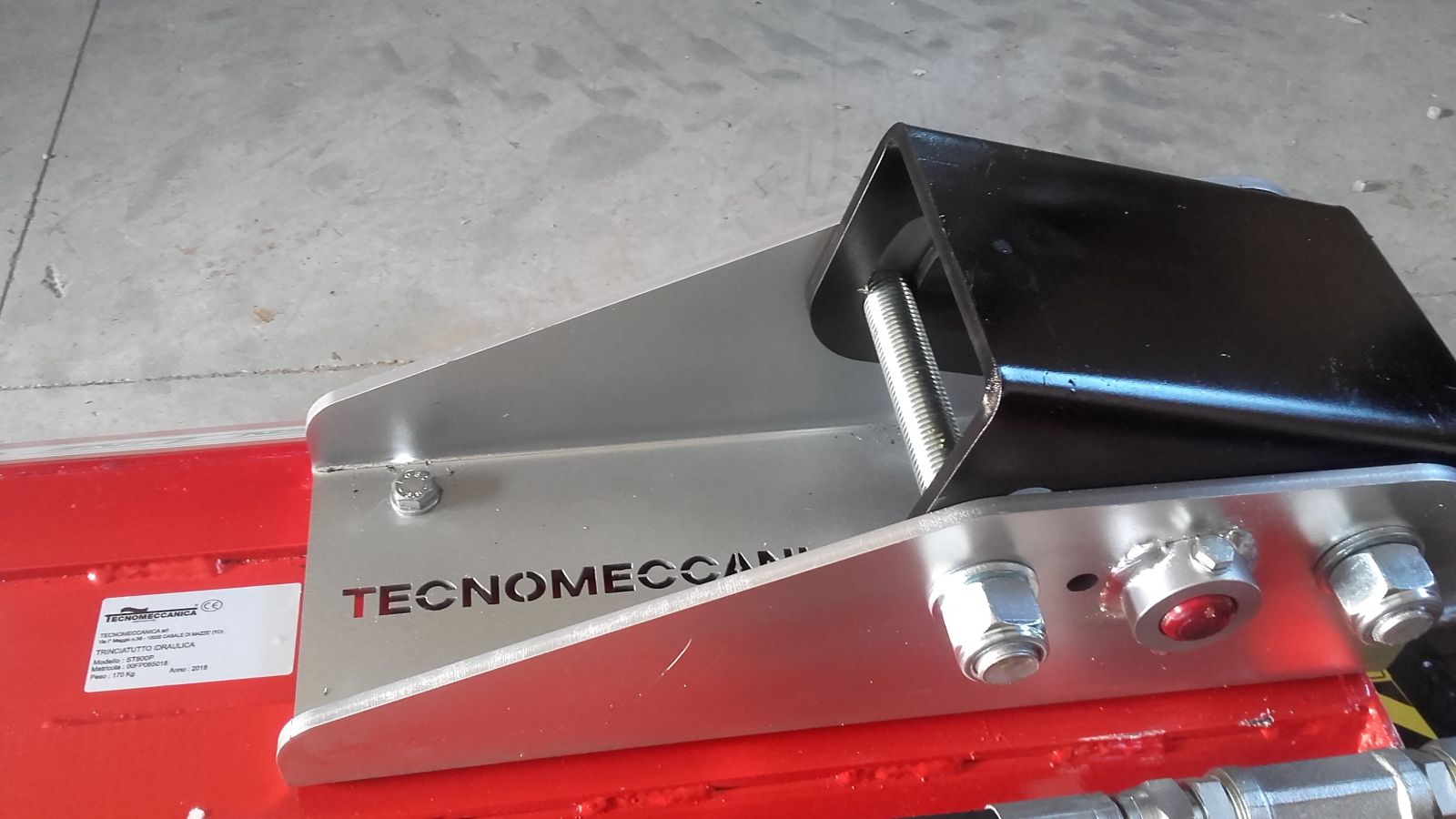

• Oscillating double-jointed coupling

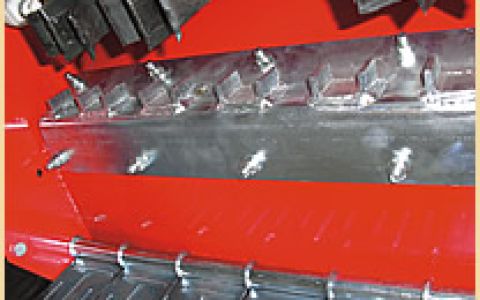

• Counter-knives
• Tools, figure E (each)
• Quick coupler

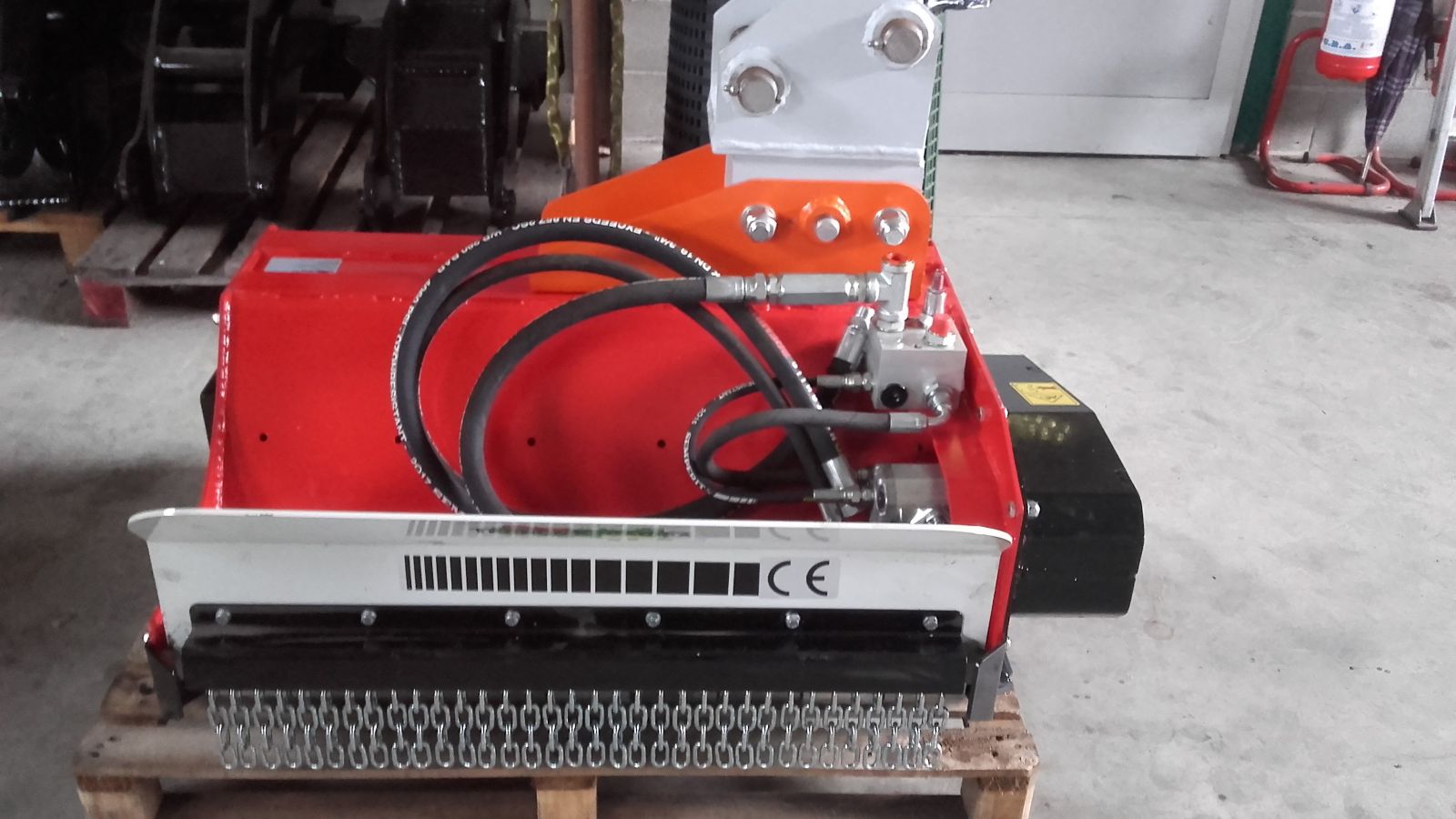

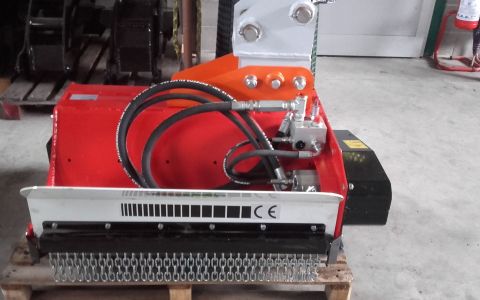

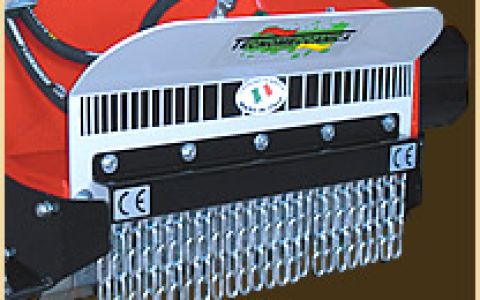

• Double front protection with chain

Technical Data

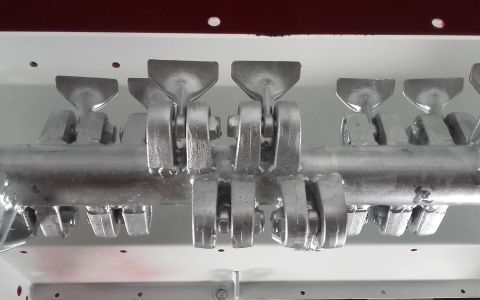

Tools

Tools	Description	Use	Model
			ST 500 C	ST 650 C	ST 800 C	ST 900 C	ST 1000 C	ST 1100 C	ST 1200 C	ST 1300 C	ST 1400 C	ST 1500 C	ST 1600 C
	Straight + 2 Y knife	The tool is ideal for breaking up grass, small pieces of wood and branches up to 5-6 cm in diameter	16 Y + 8	24 Y + 12	32 Y + 16	36 Y + 18	38 Y +19	40 Y + 20	42 Y + 21	44 Y + 22	46 Y + 23	48 Y + 24	50 Y + 25

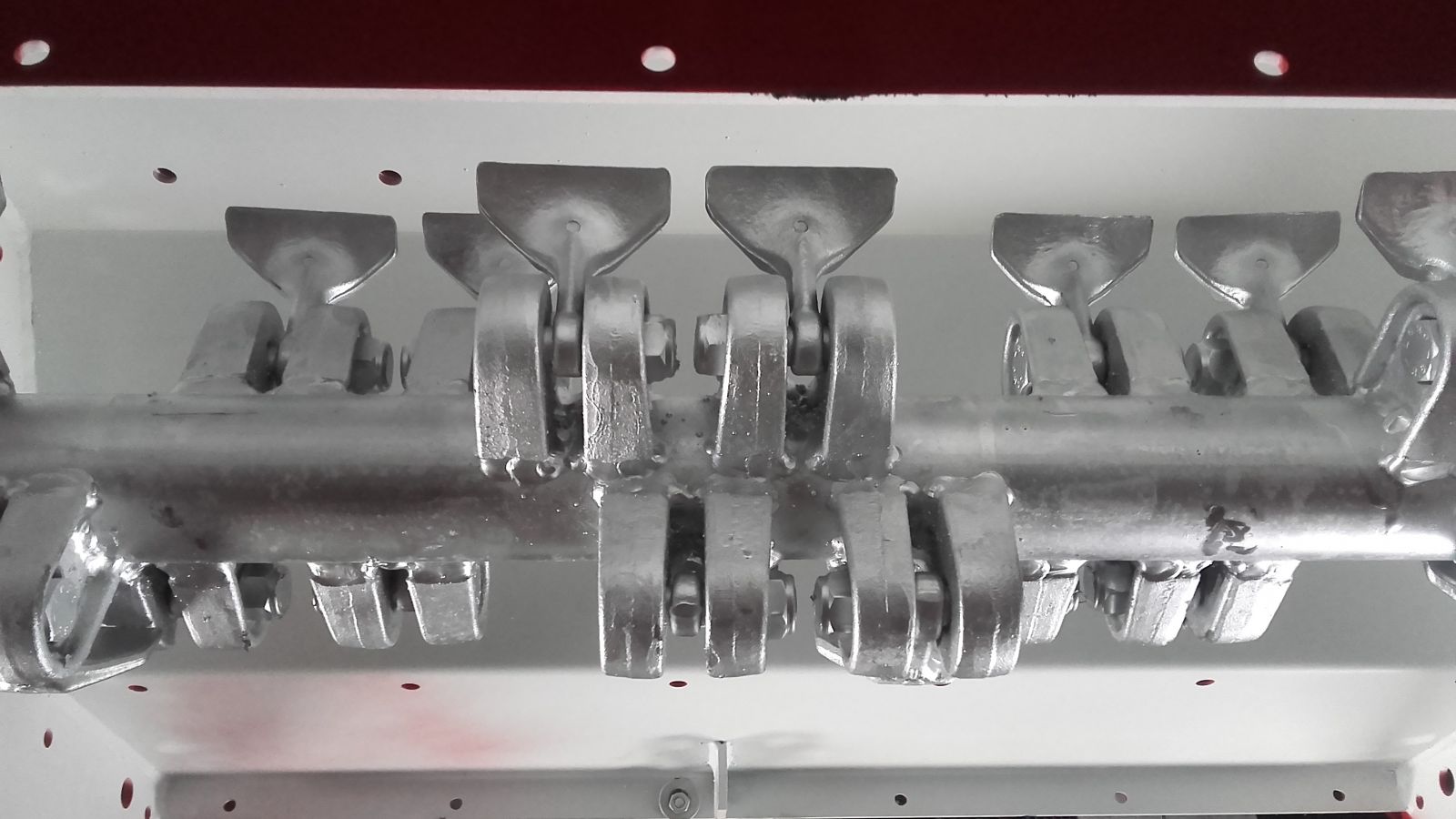

	Hammers	The tool is ideal for breaking up grass, small pieces of wood and branches up to 5-6 cm in diameter	8	12	16	18	19	20	21	22	23	24	25
