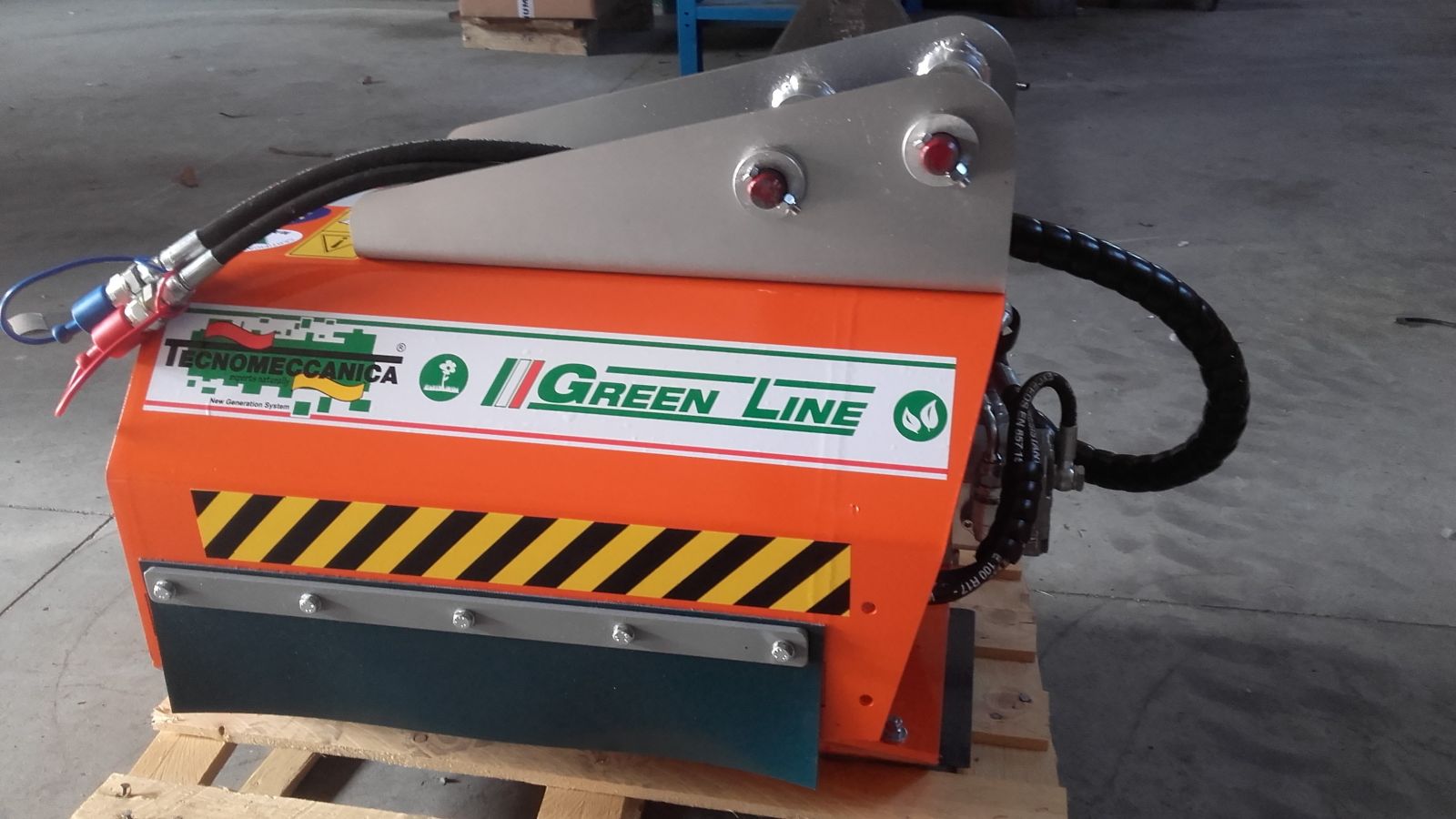

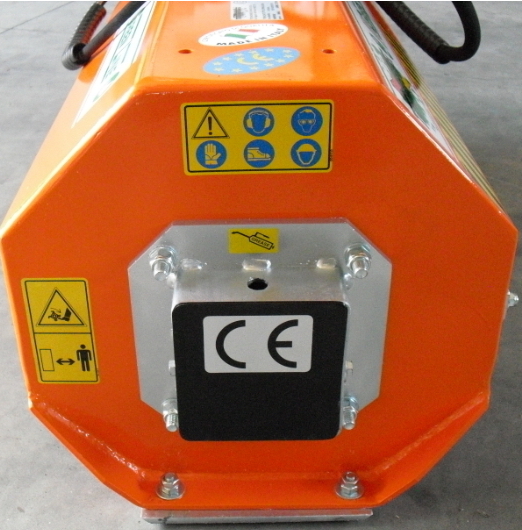

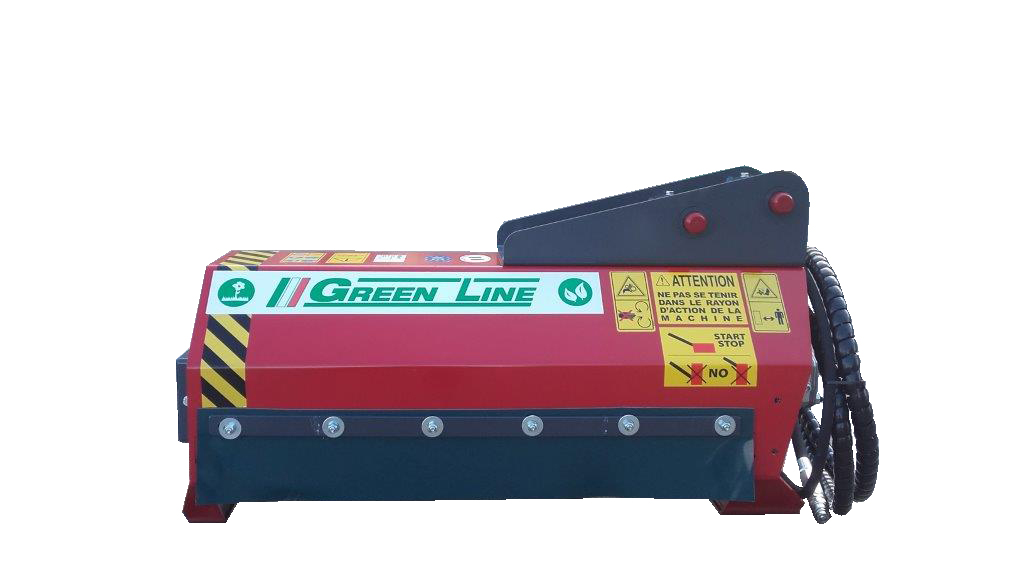

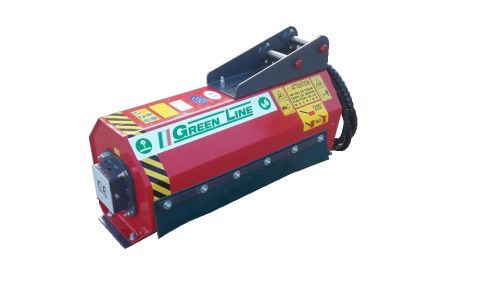

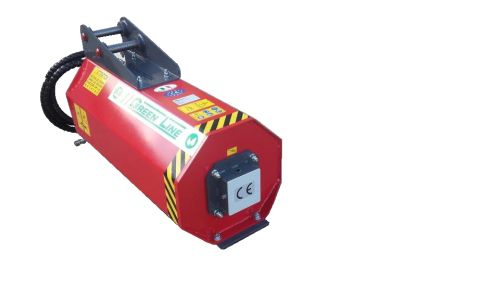

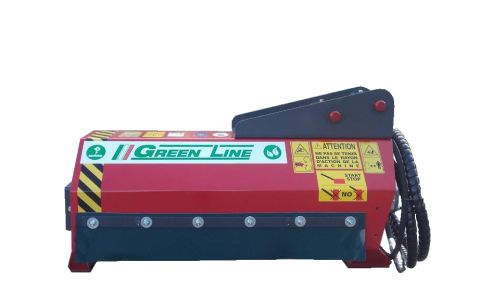

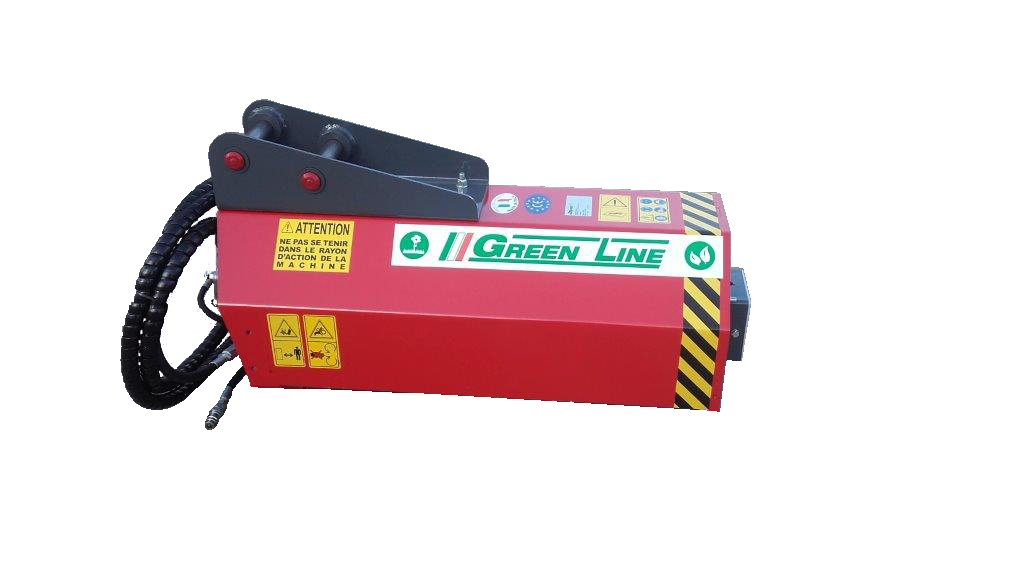

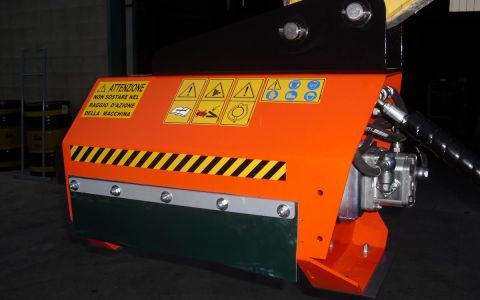

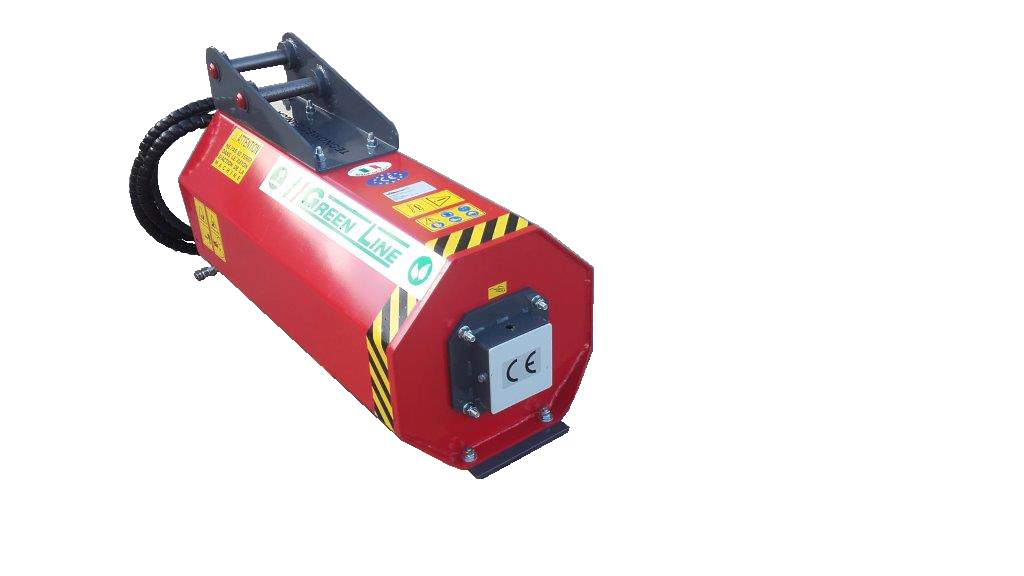

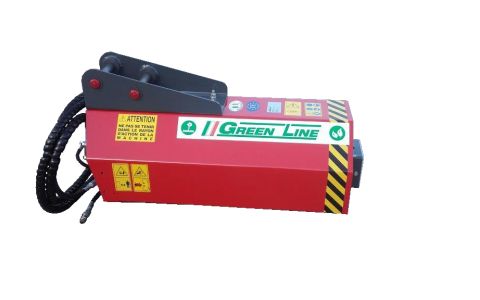

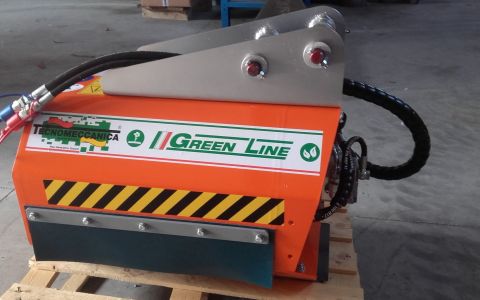

Hydraulic mulcher for excavators
Type SUPER FAST D

Working speed 4000 RPM

with direct trasmission

Le macchine sono corredate di nulla osta, abbinamento macchina e marchiature CE

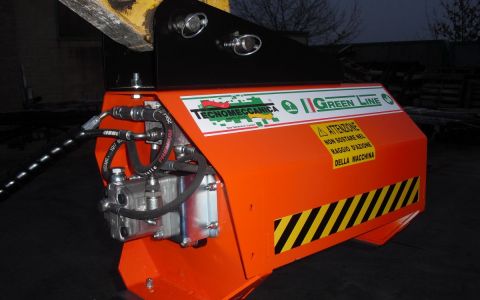

HYDRAULIC SAFETY BLOCK

The machine is supplied as standard with the new Tecnomeccanica “HYDRAULIC SAFETY BLOCK” valve kit, an aluminum safety valve containing the following valves inside:

Valve maximum pressure work hydraulic motor
No-return valve in case of reverse connection of hydraulic pipes
Shockproof valve that allows the rotor to stop proportionally
One-way valve for connecting the drainage pipe to the return circuit

The machine works only with two pipes: delivery pipe and return pipe

Standard equipment

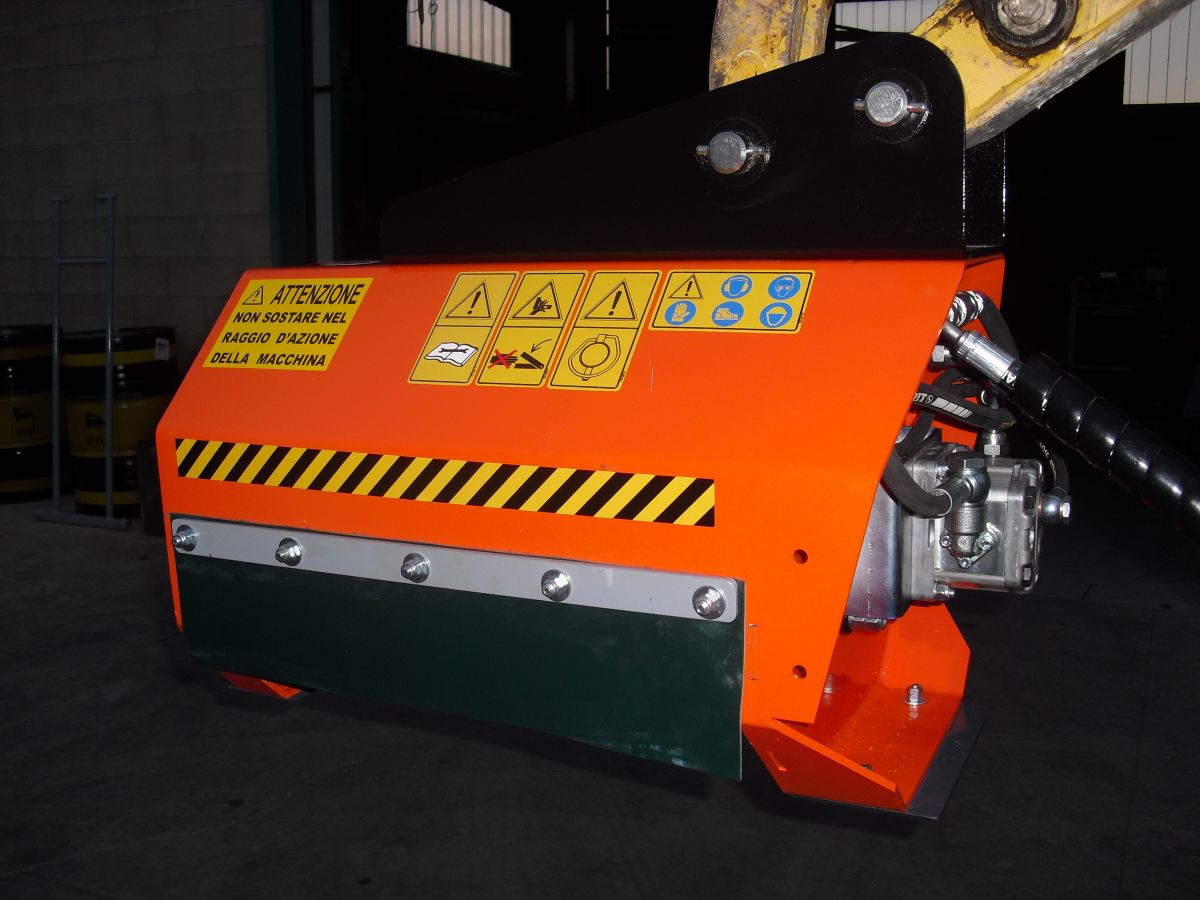

Rear stone guard
Hydraulic Safety Block

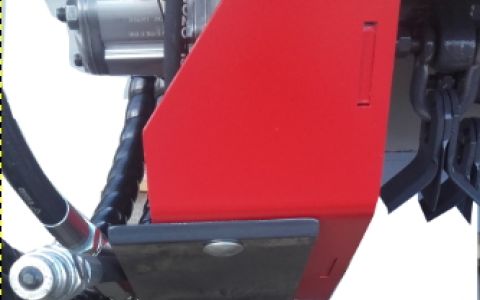

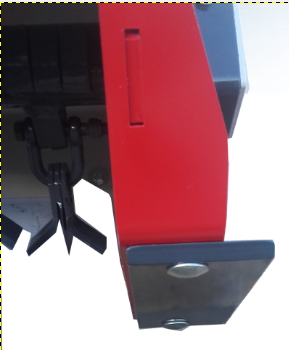

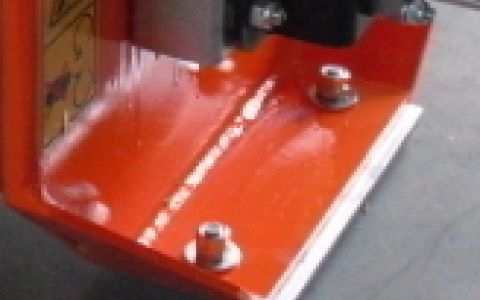

Wear-resistant pads

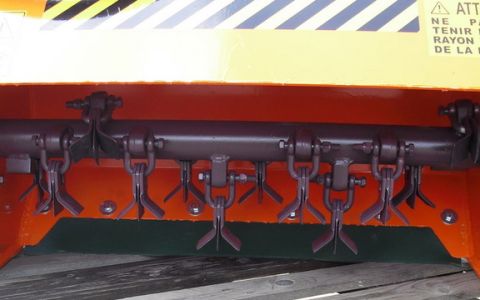

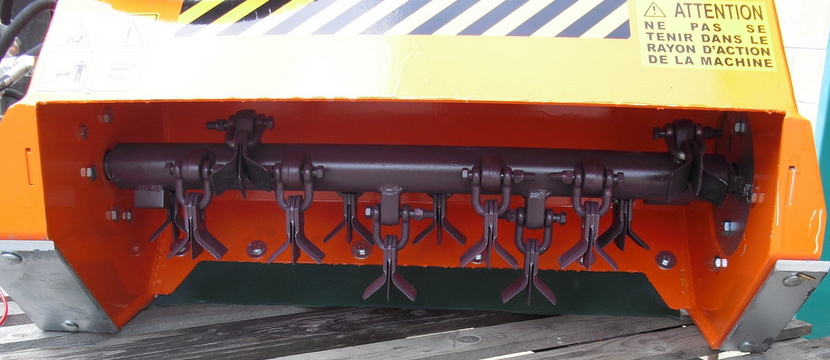

Straight knives + 2 Y- Tools B
Two hydraulic pipes / hoses without quick coupling

Accessories on demand

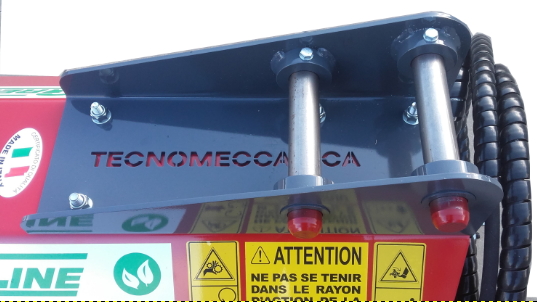

Attachment plate on demande
Quick coupler

Technical Data

Models	Total Length (mm)	Length (mm)	Height (mm)	Working width (mm)	Weight (Kg)	Hydraulic motor	Oil flow rate
ST 500 D/7	450	650	420	500	78	GR2	25/28
ST 500 D/8	450	650	420	500	78	GR2	29/34
ST 650 D/8	450	800	420	650	95	GR2	29/34
ST 800 D/11	450	950	420	800	110	GR2	42/46
ST 800 D/14	450	950	420	800	110	GR2	52/56
ST 900 D/14	450	1.050	420	900	125	GR2	52/56
ST 900 D/17	450	1.050	420	900	125	GR2	65/71
ST 1000 D/17	450	1.150	420	1.000	140	GR2	65/71

Recommended excavators

Model	Recommended excavator
ST 500 D	1,6 - 2,5 t
ST 650 D	2,5 - 3,5 t
ST 800 D	3,5 - 5,0 t
ST 900 D	4,0 - 5,0 t
ST 1000 D	5,0 - 6,0 t

Tools

Tools	Description	Use	Model
Tools	Description	Use	ST 500 D	ST 650 D	ST 800 D	ST 900 D	ST 1000 D

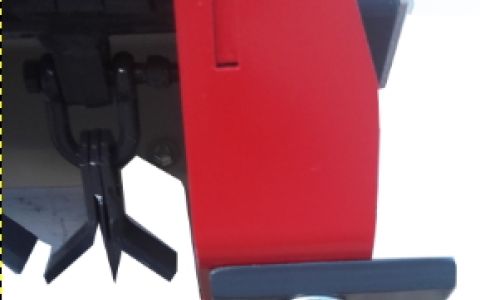

	Straight + 2 Y knife	The tool is ideal for breaking up grass, small pieces of wood and branches up to 5-6 cm in diameter	16 Y + 8	24 Y + 12	32 Y + 16	36 Y + 18	38 Y +19
